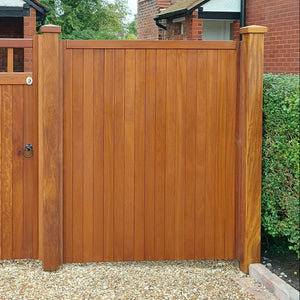

Iroko Hardwood Sleeve and Cap for 75mm Steel Posts

Size guide

Single gate:

• Take the smallest measurement.
• Take off the thickness of the posts (our wall posts are 45mm each)
• Take off 30mm (15mm either side) for expansion and movement.
• This is the width of the gate required.

Example of a gate with 2x matching wall posts:

Gap size: 970mm

Take off 90mm for the posts: 880mm

Take off 30mm for movement and expansion: 850mm

Gate width required: 850mm

Single gate height:

• Order the height of the gate you require from the bottom of the gate to the top of the horns at the side of the gate.
• We recommend leaving a 30mm gap below the gate when installing.

Double Gates

• Take the smallest measurement.
• Take off the thickness of the posts (our wall posts are 70mm each)
• Take off 45mm (15mm gaps for either side and in the centre) for expansion and movement.
• This is the width of the gate required.

Example of a gate with 2x matching wall posts:

Gap size: 3535mm

Take off 140mm for the posts: 3395mm

Take off 45mm for movement and expansion: 3350mm

Gates width required: 3350mm (gates tight together)

Double gates height:

• Order the height of the gate you require from the bottom of the gate to the top of the horns at the side of the gate.
• We recommend leaving a 30mm gap below the gate when installing.
